Automatic 12000pcs/Hour Flip Flop Stacker Machine For Corrugated Cardboard High Production With Flute Laminator

Automatic 12000pcs/Hour Flip Flop Stacker Machine For Corrugated Cardboard High Production With Flute Laminator
Automatic 12000pcs/Hour Flip Flop Stacker Machine For Corrugated Cardboard High Production With Flute Laminator
Automatic 12000pcs/Hour Flip Flop Stacker Machine For Corrugated Cardboard High Production With Flute Laminator Automatic 12000pcs/Hour Flip Flop Stacker Machine For Corrugated Cardboard High Production With Flute Laminator Automatic 12000pcs/Hour Flip Flop Stacker Machine For Corrugated Cardboard High Production With Flute Laminator Automatic 12000pcs/Hour Flip Flop Stacker Machine For Corrugated Cardboard High Production With Flute Laminator Automatic 12000pcs/Hour Flip Flop Stacker Machine For Corrugated Cardboard High Production With Flute Laminator Automatic 12000pcs/Hour Flip Flop Stacker Machine For Corrugated Cardboard High Production With Flute Laminator

Grote Afbeelding :  Automatic 12000pcs/Hour Flip Flop Stacker Machine For Corrugated Cardboard High Production With Flute Laminator

Productdetails:
Plaats van herkomst: Anhui
Merknaam: Innovo Bochen
Certificering: CE
Modelnummer: Zst-1450/1650/1900/2200
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 1 set
Prijs: 24000-40000USD
Verpakking Details: Vacuümzak
Levertijd: 15-30 dagen
Levering vermogen: 50 sets per maand
Contact

Automatic 12000pcs/Hour Flip Flop Stacker Machine For Corrugated Cardboard High Production With Flute Laminator

beschrijving
Gebruik: palletstapeling voor gelamineerd papier Grootte -bevoegdheid: Via touchscreen één toets
Verkooppunt: Sparen Arbeid Stapelsnelheid: 12000 pcs/uur
Machinetype: Palletstapelen voor bord Machinegebruik: Papierstapelen na laminering
Machine -net weeg: 4800 kg Min bladgrootte: 42*45cm
Stapelsnelheid: 12000 pcs/uur (E fluit) Max Board -maat: 1450*1450 mm
Markeren:

Automatic flip flop stacker machine

,

High production corrugated cardboard stacker

,

Flute laminator stacker machine

Automatic 12000pcs/Hour Flip Flop Stacker Machine For Corrugated Cardboard High Production With Flute Laminator

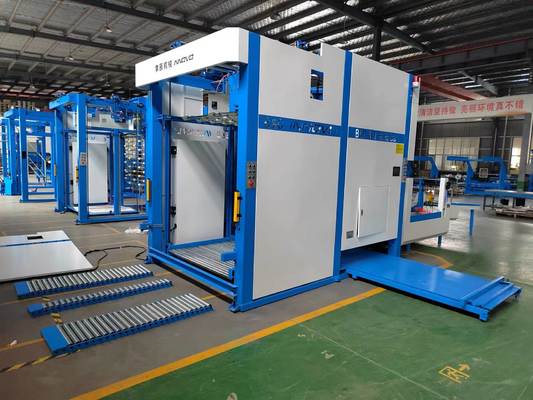

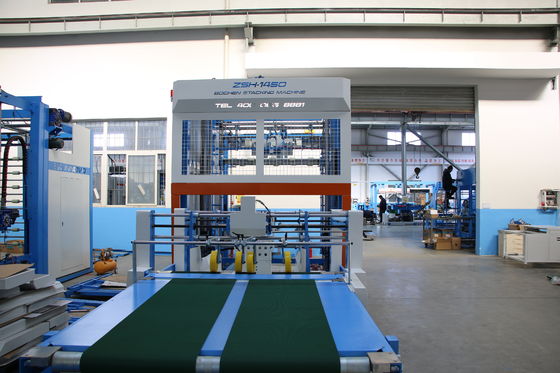

Auto Flip Flop Stacker Machine For Flute Litho Laminator

This stacking machine is an essential accessory for flute laminating machines, designed to automate paper counting, turning, and stacking processes in corrugated cardboard production.

Machine Details

The system consists of four integrated components:

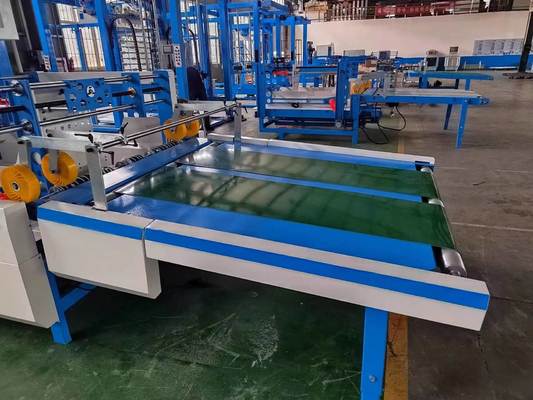

  • Slow paper table for controlled material feed
  • Stacking table for paper accumulation

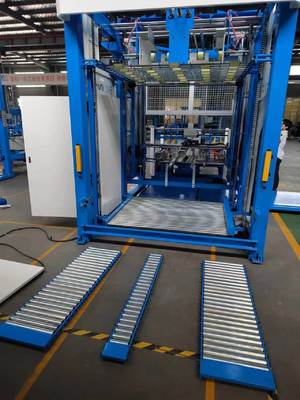

  • Turning table with paper pile inversion mechanism
  • Paper receiving table with pallet system

The automated process significantly reduces labor requirements while improving delivery efficiency and reducing manual handling intensity.

Technical Specifications
Model ZST-1450 ZST-1650
Max size 1500×1500mm 1700×1700mm
Min size 420×450mm 420×450mm
Applicable paper 150-800g/m² 150-800g/m²
Bottom paper A-F corrugated board, ≤10mm A-F corrugated board, ≤10mm
Speed 12,000 pcs/hour 12,000 pcs/hour
Power 8 kW 10 kW
Key Features
  • Newly designed delivery bin eliminates paper indentation from metal contact
  • Advanced belt conveying mechanism prevents creasing from paper weight
  • Fully automated paper counting and stacking process
  • Precision paper turning mechanism for consistent results
Machine Components
Automatic 12000pcs/Hour Flip Flop Stacker Machine For Corrugated Cardboard High Production With Flute Laminator 0
Optional Features
Automatic 12000pcs/Hour Flip Flop Stacker Machine For Corrugated Cardboard High Production With Flute Laminator 1

Semi-automatic pallet loading option available, providing labor savings and enhanced operator safety.

Machine Overview
Automatic 12000pcs/Hour Flip Flop Stacker Machine For Corrugated Cardboard High Production With Flute Laminator 2
